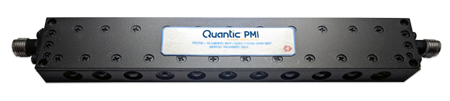

BPF-7D8G11D2G-3400-SFF Active
Bandpass Filter
Quantic PMI Model BPF-11D2G14D6G-3400-SFF is a bandpass filter with a 3 dB bandwidth of 3.4 GHz minimum covering 11.2 to 14.6 GHz. Package size is 4.29" x 0.76" x 0.35" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 9.5 |
| Frequency Range, -3 dB Bandwidth (GHz): | 7.8 to 11.2 |
| Bandwidth (GHz): | 3.4 Min |
| Insertion Loss (dB): | 2 dB Max |
| Rejection: | -60 dBc @ 0.1 - 7.4 GHz, -60 dBc @ 11.6 - 18 GHz |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female |
| Size: | 4.29" x 0.76" x 0.35" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
