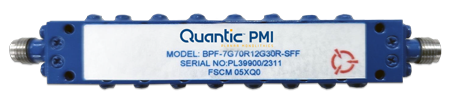

BPF-7G70R12G30R-SFF Active
Bandpass Filter
Quantic PMI Model BPF-7G70R12G30R-SFF is a bandpass filter with a bandpass frequency 7.7 to 12.3 GHz and center frequency of 10 GHz. Maximum insertion loss of 2 dB and a maximum VSWR of 1.8:1. Package size 2.99” x 0.55” x 0.39” with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 10 |
| Bandwidth (GHz): | 4.6 |
| Passband Frequency (GHz): | 7.7 to 12.3 |
| Insertion Loss (dB): | 2 dB Max |
| Input Power (dBm): | 10 W Typ |
| Passband Ripple: | 1 dB Max |
| Impedance: | 50 Ohm |
| Rejection @ 0.5 to 7 & 13 to 20 GHz: | 50 dB Min |
| VSWR: | 1.8:1 Max |
| Connectors: | SMA Female |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -45 °C to +85 °C (Operating) |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
