BPF-8G10G-SFF-1 Preliminary
Bandpass Filter
PMI Model BPF-8G10G-SFF-1 is an 8 to 10 GHz bandpass filter featuring 25 W power handling, 40 dB rejection, and 1.5:1 VSWR. Package size is 71 mm x 18 mm x 9 mm with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 9 |
| Bandwidth (GHz): | 8 to 10 |
| Insertion Loss (dB): | 1.3 dB Max |
| Input Power (dBm): | 44 dBm CW Max |
| Ripple: | 0.8 dB Max |
| Rejection: | 40 dB Min @ DC to 7.6 GHz & 10.4 to 18 GHz |
| VSWR: | 1.5:1 Max |
| Connectors: | SMA Female |

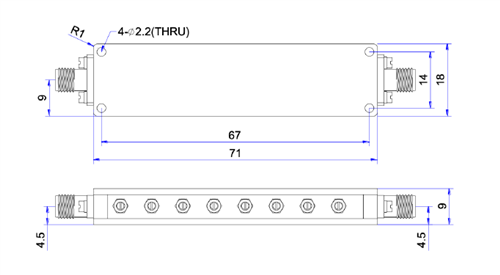

| Size: | 71 mm x 18 mm x 9 mm (2.8" x 0.7" x 0.35") |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ˚C to +70 ˚C |
| Temperature (Storage): | -55 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
