BPF-9D2G10D4G-SFF
Bandpass Filter

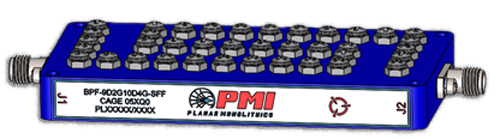

PMI Model BPF-9D2G10D4G-SFF is a bandpass filter that is designed for the frequency range of 9.2 to 10.4 GHz with has an insertion loss of 1.5 dB maximum and a phase balance of ± 5° maximum. Package size is 3.24" x 1.66" x 0.51" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 9.2 to 10.4 |
| Insertion Loss (dB): | 1.5 dB Max |
| Input Power (dBm): | 1 W Max |
| Rejection: | 40 dBc Min @ DC to 9.1 GHz, 40 dBc Min @ 10.5 to 15 GHz |
| VSWR: | 1.5:1 Max |
| Connectors: | SMA Female |
| Size: | 3.24" x 1.66" x 0.51" |
| Finish: | Painted Blue |
| Environmental Ratings: | |
| Temperature: | -20 °C to +60 °C (Operating) |
| Humidity: | MIL-STD-202, METHOD 103 COND. B |
| Shock: | MIL-STD-202, METHOD 213 COND. B |
| Vibration: | MIL-STD-202, METHOD 204 COND. B |
| Altitude: | MIL-STD-202, METHOD 105 COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107 COND. A |
