BPF3D875-2D25-CD-SFF Active
Bandpass Filter
Buy Now

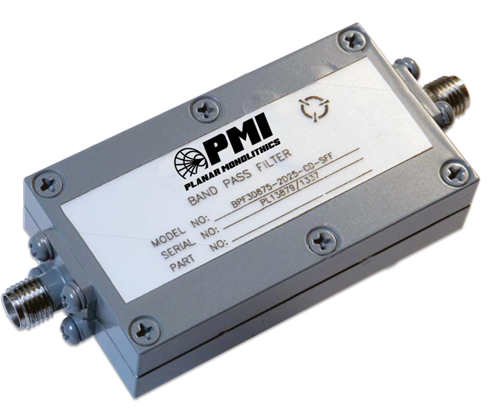

PMI Model BPF3D875-2D25-CD-SFF is a Bandpass filter that has a center frequency of 3.875 GHz and a Passband of 2.25 GHz. The passband insertion loss is 2 dB Maximum with a VSWR of 2.0:1 maximum. The filter measures 2.50" x 0.8" x 0.5" and is supplied with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency (GHz): | 3.875 |
| Bandwidth (GHz): | 2.25 |
| Passband Frequency (GHz): | 2275 to 5 |
| Insertion Loss (dB): | 2 dB Max |
| Input Power (dBm): | 33 dBm CW Max - Measured 33 dBm |
| VSWR: | 2.0:1 Max - Measured 1.67:1 |
| Connectors: | SMA Female |
| Size: | 2.15" x 1.20" x 0.51" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to 90 °C |
| Humidity: | -55 °C to 90 °C |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
