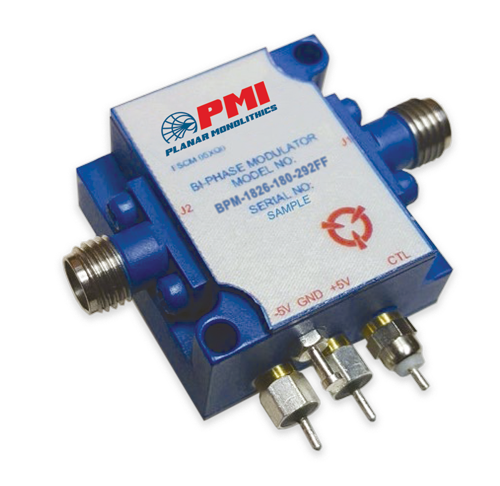

BPM-1826-180-292FF

Bi-Phase Modulator

PMI Model No. BPM-1826-180-292FF is a Bi-Phase Modulator operating over the 18.0 to 26.0 GHz frequency range. This model offers insertion loss of 6 dB typical while maintaining a typical amplitude balance of ±3.0 dB. This compact housing measures 1.0" x 1.0" x 0.5" and is outfitted with 2.92 mm female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 18.0 to 26.0 GHz
Frequency Min: 18.0 GHz
Frequency Max: 26.0 GHz
Phase States: 0° / 180º
Insertion Loss: 6 dB Typ
VSWR: 2.0:1 goal, 3.0:1 Max
Control Type: TTL
Impedance: 50 Ohms
Amplitude Balance: ±3.0 dB Typ
RF Connectors: 2.92 mm (F)
Phase Shift Control Input: TTL "0" = 0°
TTL "1" = 180°
Power Supply: +5 VDC @ 75 mA Max
-5 VDC @ 20 mA Max
Size: 1.0" x 1.0" x 0.5"
Finish: Painted Blue
Switching Speed: 100 ns Max
Phase Variation: ±40° Typ
Power Handling: 20 dBm Operational
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: Up to 90%, Non-Condensing
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Con.d B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
