BR-1760M1850M-SFF Preliminary
Band Reject (Notch) Filter
PMI Model BR-1760M1850M-SFF is a notch filter designed to reject signals between 1.76 and 1.85 GHz with a center frequency of 1.805 GHz and features 30 dB rejection, 23 dBm power handling, and <2 dB insertion loss in the pass bands. Housing size is 3.15" x 0.98" x 0.59" with SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency, Fo (GHz): | 1.805 |
| Notch Bandwidth (GHz): | 1.76 to 1.85 |
| Passband Insertion Loss (dB): | 2 Max |
| Lower Passband (GHz): | DC to 1.7 |
| Upper Passband (GHz): | 1.91 to 2.4 |
| Passband VSWR: | 1.6:1 Max |
| RF Input Power: | 23 dBm CW Max |
| Rejection: | 30 dB Min |
| Connectors In/Out: | SMA Female |

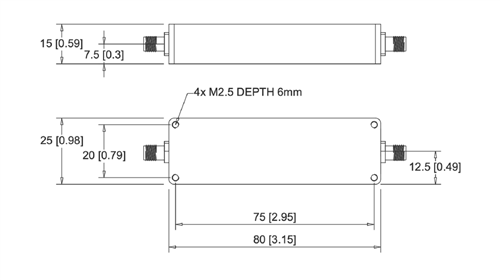

| Size: | 3.15" x 0.98" x 0.59" |
| Weight: | 70 g Typ |
| Finish: | Painted Blue |
| Environmental Ratings: | |
| Temperature: | -20 ˚C to 60 ˚C (Operating) -46 ˚C to 71 ˚C (Storage) |
