BR-360M-50M-SFF
Preliminary
Band Reject Notch Filter
Quantic PMI Model BR-360M-50M-SFF is a Band Reject Notch Filter with center frequency of 0.36 GHz; notch bandwidth of 0.02 GHz; and a VSWR of 1.7:1. Package size is 1.97" x 1.18" x 0.59" with SMA female connectors in and out.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequency, Fo (GHz): | 0.36 |
|---|
| Notch Bandwidth (GHz): | 0.05 |
|---|
| Passband Insertion Loss (dB): | 3 dB Max |
|---|
| Passband Frequency (GHz): | DC to 0.2
0.4 to 1 |
|---|
| Passband VSWR: | 1.7:1 Max |
|---|
| RF Input Power: | 2W Max |
|---|
| Connectors In/Out: | SMA Female |
|---|

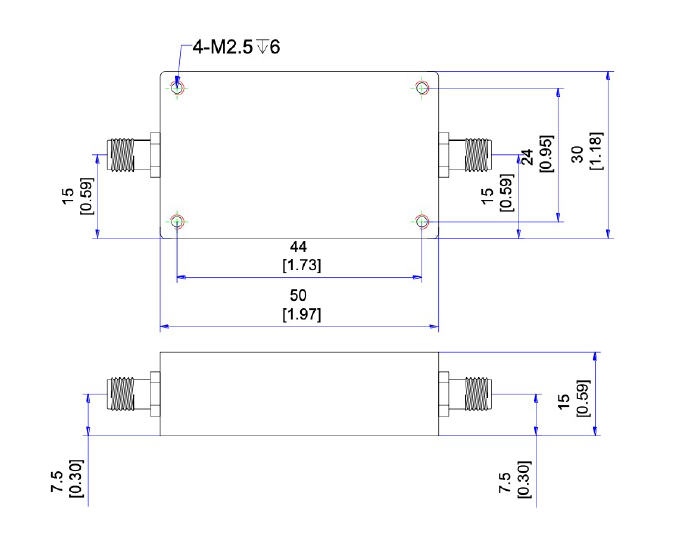

| Size: | 1.97'' x 1.18'' x 0.59'' |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -20 °C to +60 °C |
|---|
