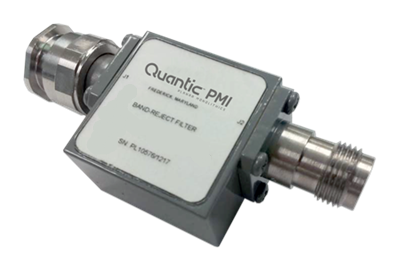

BR-650M-700M-CD-TNC-MF Preliminary
Band Reject Filter
Quantic PMI Model BR-650M-700M-CD-TNC-MF is a band reject filter that offers a passband of DC to 18 GHz while typically having 40 dB of rejection at 500 MHz. This filter has only 1.5 dB of loss and a VSWR of 2.0:1 maximum. This filter can handle input power levels up to 5 W. The package measures 1.10" x 1.10" x 0.687" with TNC male/female connectors.

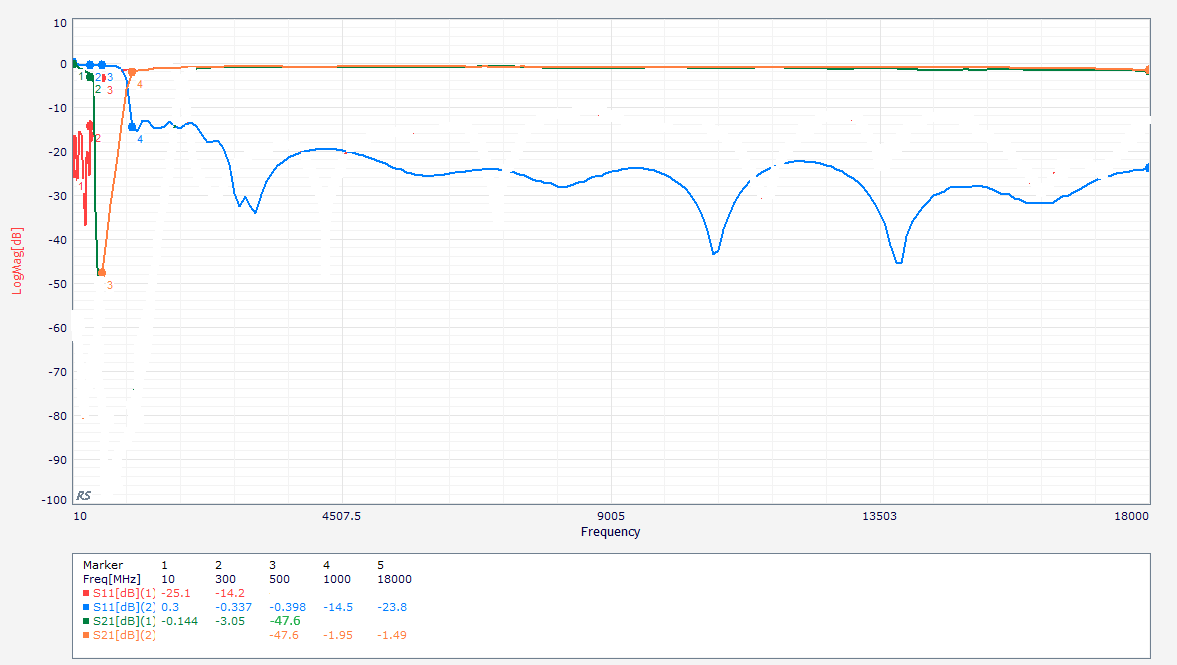

Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency, Fo (GHz): | 0.65 |
| Notch Bandwidth (GHz): | 0.7 |
| Passband Insertion Loss (dB): | 1.5 dB |
| Passband Frequency (GHz): | DC to 0.3 & 1 to 18 |
| Passband VSWR: | 2.0:1 |
| RF Input Power: | 2 W Typ 5 W Max |
| Rejection: | -40 dB Typ at 0.5 GHz |
| Connectors In/Out: | TNC Male / Female - Field Removable |
| Size: | 1.10" x 1.10" x 0.687" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +80 ºC |
| Non-Operating: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
