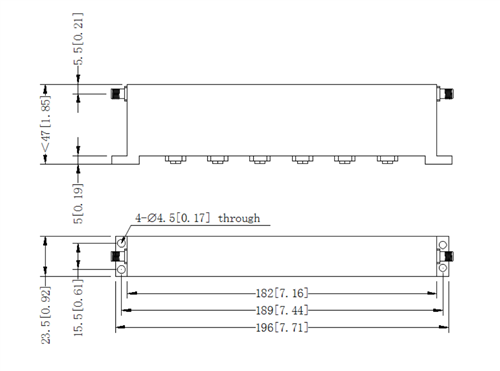

BRF-1643D5M-50-SFF Preliminary
Band Reject Filter
PMI model BRF-1643D5M-50-SFF is a band reject filter centered at 1.6435 GHz featuring 50 W power handling, 0.5 dB insertion loss, and 1.8:1 VSWR.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency, Fo (GHz): | 1.6435 |
| Notch Bandwidth (GHz): | 1.6265 to 1.6605 |
| Passband Insertion Loss (dB): | 0.5 Max |
| Lower Passband (GHz): | DC to 1.5805 |
| Upper Passband (GHz): | 1.7155 to 3 |
| Passband VSWR: | 1.8:1 Max |
| RF Input Power: | 50 W CW Max |
| Rejection: | 50 dB Min |
| Connectors In/Out: | SMA (F) |
| Weight: | 600 g Max |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -10 to +50 ˚C |
