BRF1370-50-CD-SFF-LK Active
Band Reject Filter

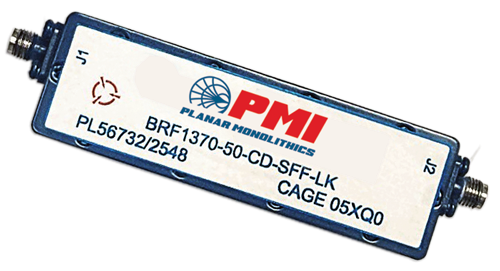

PMI Model BRF1370-50-CD-SFF-LK is a band reject filter with center frequency of 1.37 GHz, notch bandwidth of 0.06 GHz, and notch depth of 50 dB. Housing measures 3.25" x 0.77" x 1.0" package with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Center Frequency, Fo (GHz): | 1.37 |
| Notch Bandwidth (GHz): | 0.06 |
| Passband Insertion Loss (dB): | 1.5 Max |
| Lower Passband (GHz): | DC to 1.2 |
| Upper Passband (GHz): | 1.45 to 2.7 |
| Passband VSWR: | 1.6:1 Max |
| RF Input Power: | 10 W Max |
| Connectors In/Out: | SMA Female |
| Size: | 3.25" x 0.77" x 1.0" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -10 °C to +65 °C |
| Non-Operating: | -65 °C to + 125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
