CIR-10G11G-23-30W-TAB Preliminary
Circulator
Quantic PMI Model CIR-10G11G-23-30W-TAB is a circulator that operates over the frequency range 10 to 11 GHz with an insertion loss of 0.3 dB and an isolation of 23 dB. Model is outfitted with TAB connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 10 to 11 |
| Frequency Min (GHz): | 10 |
| Frequency Max (GHz): | 11 |
| Insertion Loss (dB): | 0.3 dB Max |
| VSWR: | 1.2:1 Max |
| Forward Power: | 30 W |
| Reverse Power: | 30 W |
| Connectors: | TAB |

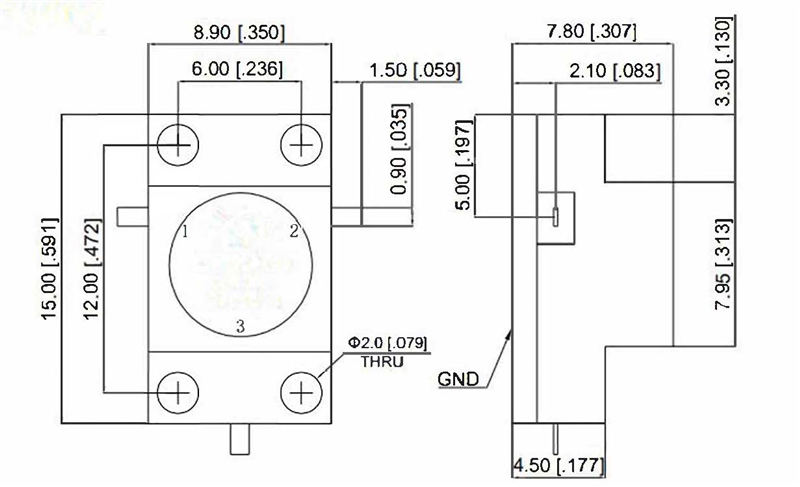

| Size: | 0.350'' x 0.591'' x 0.307'' |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -55 °C to +85 °C |
