CIR-163M168M-19-100W-NFF Preliminary
Coaxial Circulator
PMI Model CIR-163M168M-19-100W-NFF is a 163 to 168 MHz coaxial circulator featuring 100 W power handling, 0.5 dB insertion loss, and 19 dB isolation. Housing size is 3.15" x 3.15" x 1.22" with Type N female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 0.163 to 0.168 |
| Frequency Min (GHz): | 0.163 |
| Frequency Max (GHz): | 0.168 |
| Insertion Loss (dB): | 0.5 Max |
| Reverse Isolation: | 19 dB Min |
| VSWR: | 1.25:1 Max |
| Forward Power: | 100 W CW |
| Impedance: | 50 ohm |
| Connectors: | N Female |

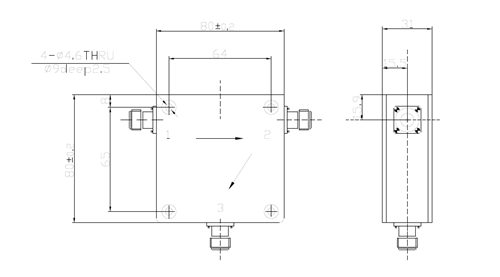

| Size: | 3.15" x 3.15" x 1.22" 80 mm x 80 mm x 31 mm |
| Finish: | Aluminum Alloy |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | 0 ˚C to +60 ˚C (Operating) -55 ˚C to +125 ˚C (Storage) |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
