CIR-2D9G3D5G-18-NFF Preliminary

Coaxial Circulator

CIR-2D9G3D5G-18-NFF

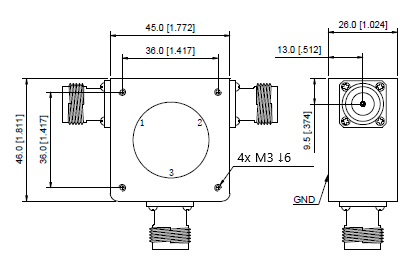

Quantic PMI Model CIR-2D9G3D5G-18-NFF is a coaxial circulator that operates within the 2.9 to 3.5 GHz frequency range that features 0.5 dB insertion loss, and 18 dB isolation.  Housing size is 1.772" x 1.811" x 1.024" with N type female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 2.9 to 3.5
Frequency Min (GHz): 2.9
Frequency Max (GHz): 3.5
Insertion Loss (dB): 0.5 dB Max
Isolation (GHz): 18 dB Min
VSWR: 1.3:1 Max
Forward Power: 600 W Max
Reverse Power: 600 W Max
Connectors: N Female
Size: 1.772" x 1.811" x 1.024"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -40 °C to +85 °C
