| General Parameters: |
|---|
| Status: | Active |
|---|
| Center Frequency: | 13.56 GHz |
|---|
| Insertion Loss: | 4 dB |
|---|
| Bandwidth: | 0.3 GHz |
|---|
| VSWR: | 1.5:1 Max |
|---|
| Connectors In/Out: | SMA (F) |
|---|

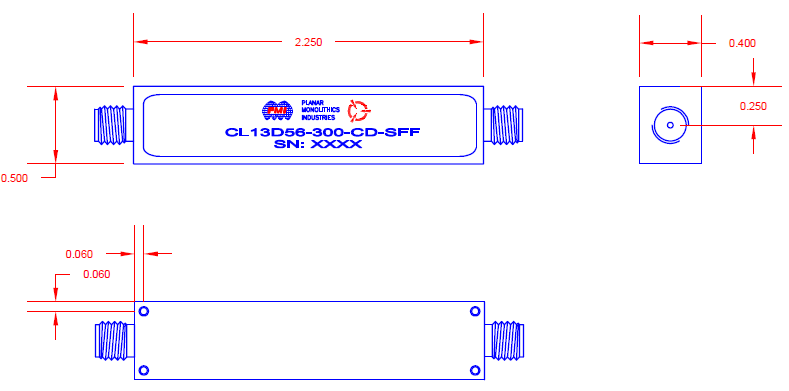

| Size: | 2.25" x 0.40" x 0.50" |
|---|
| Rejection from DC to 13.26 GHz: | -40 dB |
|---|
| Rejection from 13.86 to 40 GHz: | -40 dB |
|---|
| Environmental Ratings: |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
|---|
| Fungus: | MIL-STD-810C, Method 508.2 |
|---|
| Temperature (Operating): | -55 °C to +85 °C |
|---|
| Temperature (Storage): | -65 °C to +125 °C |
|---|
