General Parameters: |
Status: | Active |
Center Frequency: | 14.34 GHz |
Insertion Loss: | 4 dB Max |
Bandwidth: | 0.3 GHz |
VSWR: | 1.5:1 Max |
Connectors In/Out: | SMA (F) |

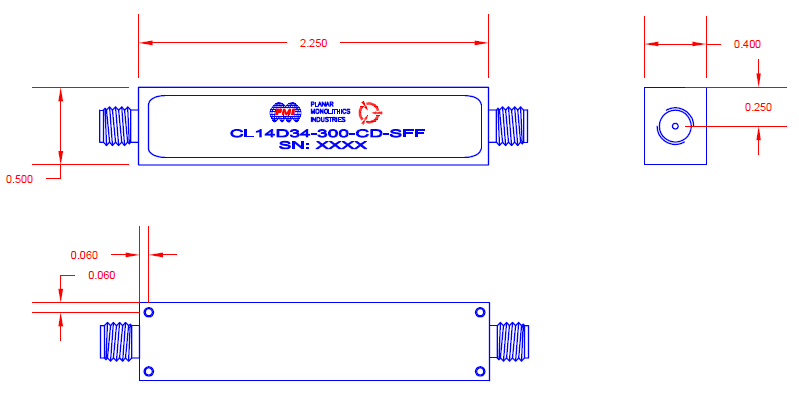

Size: | 2.25" x 0.40" x 0.50" |
Rejection from DC to 14.04 GHz: | -40 dB |
Rejection from 14.04 to 40 GHz: | -40 dB |
Environmental Ratings: |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107 |
Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
Fungus: | MIL-STD-810C, Method 508.2 |
Temperature (Operating): | -55 °C to +85 °C |
Temperature (Storage): | -65 °C to +125 °C |
