General Parameters: |
Status: | Preliminary |
Center Frequency: | 14550 MHz |
Insertion Loss: | 0.4 dB |
Bandwidth: | 300 MHz |
VSWR: | 1.5:1 |
Rejection: | -40dBc @ DC to 14.35GHz, -40dBc @ 14.85 to 40GHz |
Connectors In/Out: | SMA (F/F) |

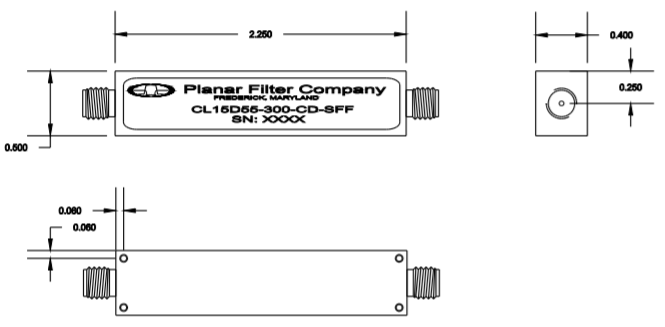

Size: | 2.25"L x 0.4"W x 0.5"H |
Environmental Ratings: |
Temperature: | -40ºC to +85 ºC Operating, -40ºC to +100 ºC Non-Operating |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Altitude: | MIL-STD-202F, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
