CL14D75G-6D5G-CD-SS Preliminary
Bandpass Filter

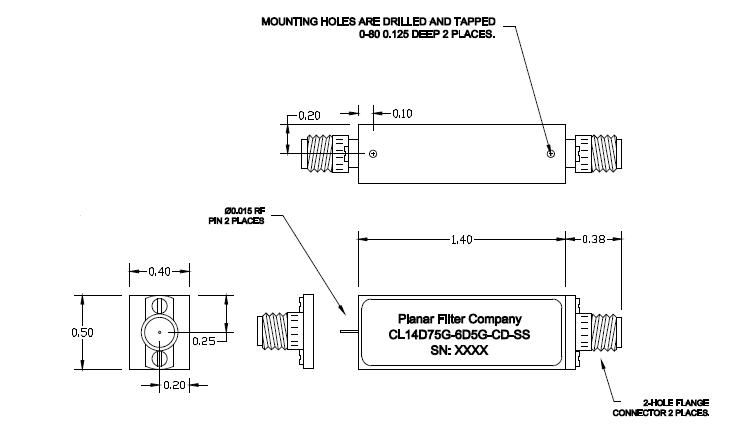

Quantic PMI Model CL14D75G-6D5G-CD-SS is a bandpass filter centered at 14.75 GHz with a nominal bandwidth is 6.5 GHz. Package size is 1.5" x 0.4" x 0.5" with SMA connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 14.75 |
| Bandwidth (GHz): | 6.5 |
| Insertion Loss (dB): | 1 dB |
| Rejection: | -40 dBc @ 2 to 9.5 GHz, -30 dBc @ 19 GHz |
| VSWR: | 2.0:1 Max |
| Connectors: | SMA Female Removable |
| Size: | 1.5" x 0.4" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
