| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Center Frequency: | 16.55 GHz |
|---|
| Insertion Loss: | 0.4 dB |
|---|
| Bandwidth: | 0.3 GHz |
|---|
| VSWR: | 1.5:1 |
|---|
| Rejection: | -40 dBc @ DC to 16.35 GHz,
-40 dBc @ 16.95 to 40 GHz |
|---|
| Connectors In/Out: | SMA (F) |
|---|

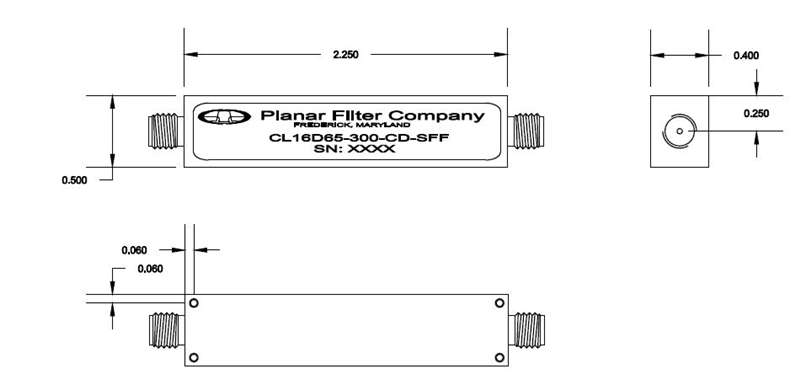

| Size: | 2.25" x 0.4" x 0.5" |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
