CL3G-1G-CD-SS-2 Preliminary
Band Pass Filter
PMI model CL3G-1G-CD-SS-2 is a 2.5 to 3.5 GHz band pass filter featuring 5 W power handling, 1 dB insertion loss, and 0.4 dB ripple.

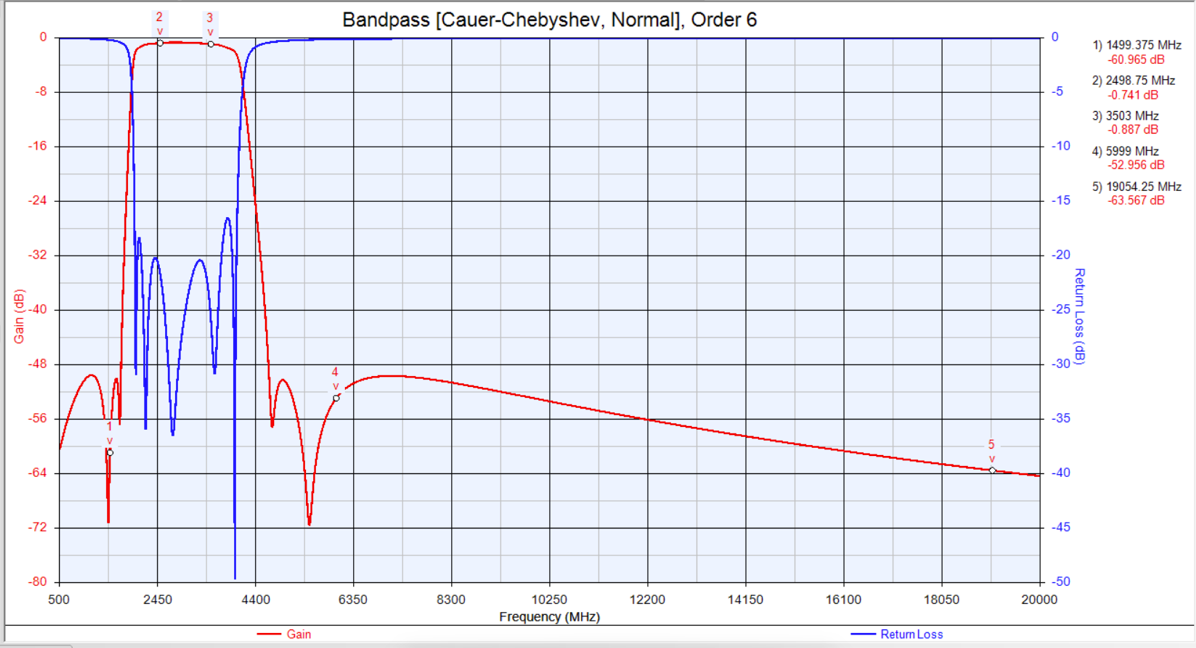

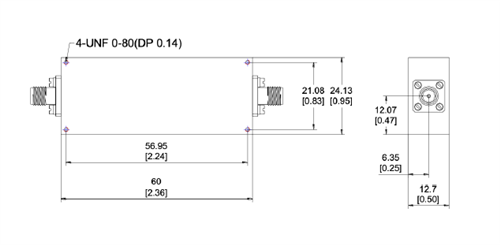

Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Center Frequency (GHz): | 3 |
| Bandwidth (GHz): | 2.5 to 3.5 |
| Insertion Loss (dB): | 1 Max |
| Input Power (dBm): | 37 CW Max |
| Ripple: | 0.4 dB Max |
| Rejection: | 30 dB Min @ DC to 1.5 GHz 40 dB Min @ 6 to 7 GHz 50 dB Min @ 9 to 19 GHz |
| VSWR: | 1.5:1 Max |
| Connectors: | SMA (F) |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 to +70 ˚C |
| Temperature (Storage): | -55 to +125 ˚C |
| Humidity: | MIL-STD-202 Method 103 Cond. B |
| Shock: | MIL-STD-202 Method 213 Cond. B |
| Vibration: | MIL-STD-202 Method 204 Cond. B |
| Altitude: | MIL-STD-202 Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202 Method 107 Cond. A |
