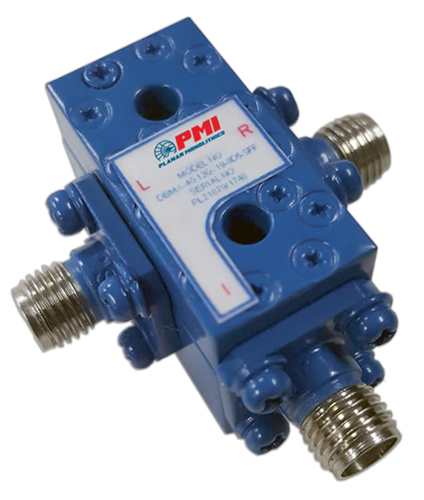

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 4 to 12 |
|---|
| Frequency Min (GHz): | 4 |
|---|
| Frequency Max (GHz): | 12 |
|---|
| Output Frequency Range: | 8.9 to 9.4 GHz (R Port) |
|---|
| Input: | F1 = 870 MHz (I Port)
P1 = +5 dBm
F2 = 9.77 to 10.27 GHz (L Port)
P2 = +12 dBm |
|---|
| Conversion Loss: | 8.5 dB (I to R) |
|---|
| Isolation: | 19 dB (L to R)
30 dB (L to I)
27 dB (I to R) |
|---|
| Noise Figure: | 8.5 dB Max |
|---|
| Nominal Impedance: | 50 Ohms |
|---|
| RF Input Power: | 200 mW Max @ +25 °C |
|---|
| Input Current: | 100 mA DC Peak |
|---|
| Finish: | Painted Blue |
|---|
| Connectors: | SMA Female per MIL-C-39012 |
|---|
| Size (Excluding Connectors): | 1.00" x 0.725" x 0.51" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -54 °C to +100 °C (Operating)
-65 °C to +100°C (Non-Operating) |
|---|
| Vibration: | MIL-STD-202, Method 204 Cond. D |
|---|
| Shock: | MIL-STD-202, Method 213 Cond. C |
|---|
| Altitude: | Sea Level to 10, 000 ft (Operating)
50, 000 ft max. (Non-Operating) |
|---|
| Humidity: | MIL-STD-202, Method 103 Cond. B |
|---|
| Corrosion: | MIL-STD-202, Method 106 |
|---|
