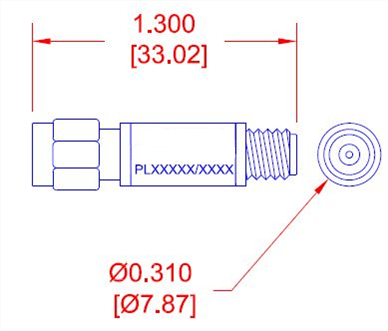

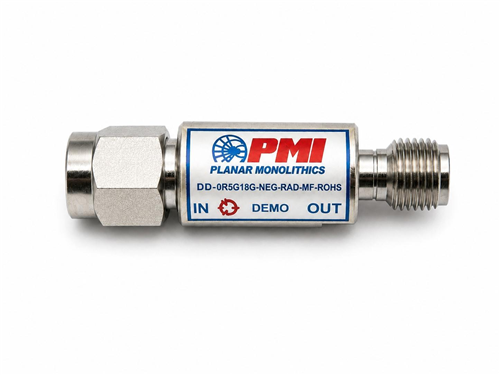

DD-0R5G18G-NEG-RAD-MF-ROHS Active
Tunnel Diode Detector
PMI Model Number DD-0R5G18G-NEG-RAD-MF-ROHS is a 0.5 to 18.0 GHz, high speed, high sensitivity, diode detector requiring no bias and offering a response time of less than 20 ns.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.5 to 18.0 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18.0 |
| VSWR: | 3.5:1 Max |
| Frequency Flatness (dB): | ±1.5 Max |
| Voltage Sensitivity: | 700 mV/mW Typ (10 MΩ Load) 300 mV/mW Typ (1 MΩ Load) |
| Tangential Sensitivity: | -40 dBm @ 500 MHz Video Bandwidth |
| Input Power: | +20 dBm Max |
| Polarity: | Negative |
| Rise/Fall Time: | 5 ns Typ/10 ns Max @ 0 dBm & 50 Ω Load 20 ns Max @ -5 dBm & 100 Ω Load |
| Connectors In/Out: | 2.92 mm M/F |
| Finish: | Albaloy Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -20 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
