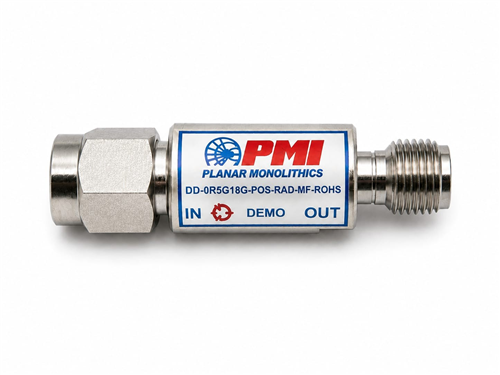

DD-0R5G18G-POS-RAD-MF-ROHS Active
Tunnel Diode Detector
PMI Model DD-0R5G18G-POS-RAD-MF-ROHS is a 0.5 to 18 GHz, high speed, high sensitivity, tunnel diode detector requiring no bias and offering a response time of <20 ns. Package size is 1.31" x Ø0.4" with 2.29mm male/female connectors. ROHS Compliant.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| VSWR: | 3.5:1 Max (Measured @ -10 dBm) |
| Frequency Flatness (dB): | ±1.5 dB Max (With 10 MΩ or 1 MΩ Load) |
| Voltage Sensitivity: | 700 mV/mW Typ With 10 MΩ Load 300 mV/mW Typ With 1 MΩ Load |
| Tangential Sensitivity: | -40 dBm @ 500 MHz Video Bandwidth |
| Input Power: | 20 dBm Max |
| Polarity: | Positive |
| Rise/Fall Time: | 5 ns Typ, 10 ns Max @ 0 dBm Input with 50 Ω Load 20 ns Max @ -5 dBm Input with 100 Ω Load |
| Dynamic Range: | -40 to 20 dBm |
| Connectors In/Out: | 2.92mm Male / Female |
| Size: | 1.31" x Ø0.4" |
| Finish: | Albaloy Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -20 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
