PMI Model Number DD-100M1R5G-ZBS-N-SFF is a high speed, high sensitivity Shottky diode detector requiring zero bias and offering excellent temperature stability. The frequency range is 0.1 to 1.5 GHz.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 0.1 to 1.5 GHz
Frequency Min: 0.1 GHz
Frequency Max: 1.5 GHz
VSWR In/Out: 2.0:1 max
VSWR In/Out (Measured): 2.0:1 max. (measured @ -23 dBm)
Frequency Flatness: ±1.0 dB max.
Voltage Sensitivity: 500 mV/mW min.
Tangential Sensitivity: -45 dBm (2 MHz Video Bandwidth with 2 dB noise figure video amp.)
Video Capacitance: 100 pF max.
Output Voltage: Negaitive is standard
Max Input Power: 100 mW
Video Resistance: 2500 ohms typ, 7500 ohms max.
Connectors In/Out: SMA (M) Input & SMA (F) Output
Finish: Stainless Steel

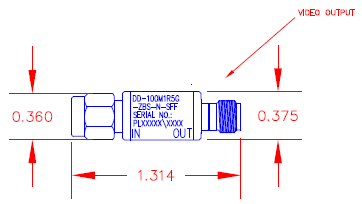

Size: 1.134" x 0.375" dia.
Environmental Ratings:
Operating Temperature: -40ºC to +55 ºC
Non-Operating Temperature: -54ºC to +85 ºC
Shock: MIL-STD-810G
Vibration: MIL-STD-810G
