DD-10M18D5G-N-RAD-MF Preliminary
Diode Detector

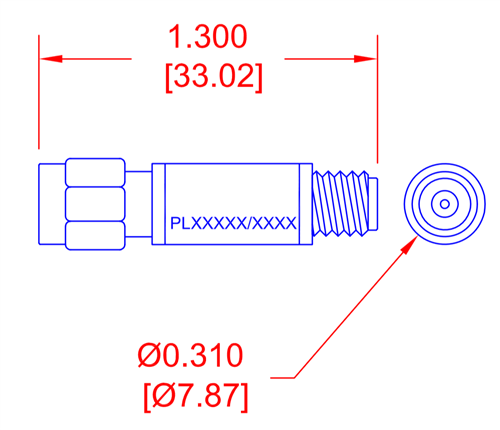

PMI Model DD-10M18D5G-N-RAD-MF is a 0.01 to 18.5 GHz diode detector featuring 400 mV/mW sensitivity, 470 pF output capacitance, and negative output polarity. Package size is 1.3" x Ø0.31" with 2.92mm male/female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 0.01 to 18.5 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 18.5 |
| VSWR In/Out: | 1.6:1 Typ, 1.7:1 Max |
| Frequency Flatness (dB): | ±0.5 dB Typ ±0.6 dB Max |
| Voltage Sensitivity: | 400 mV/mW Typ |
| Video Capacitance: | 470 pF Typ |
| Max Input Power: | 20 dBm CW, 27 dBm Peak |
| Output Polarity: | Negative |
| Dynamic Range: | -30 to 20 dBm |
| Connectors In/Out: | 2.92mm Male / Female |
| Finish: | Albaloy Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 °C to +100 °C |
| Non-Operating Temperature: | -65 °C to +100 °C |
