DD-10M18G-ZBS-MF-ROHS-RL Active
10 MHz to 18 GHz Diode Detector

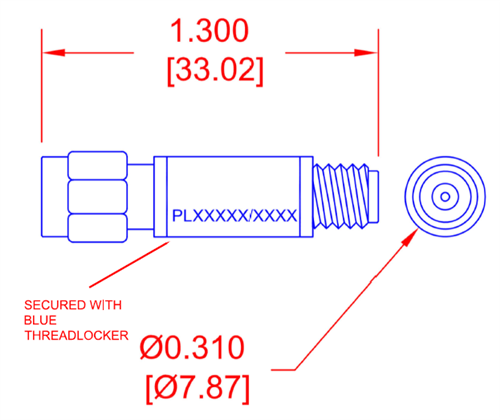

PMI Model DD-10M18G-ZBS-MF-ROHS-RL is a zero bias schottky diode detector operating over the 0.01 to 18 GHz frequency range with a frequency flatness of ±1 dB; sensitivity of 500 mV/mW; negative polarity and a capacitance of 30 pF. Package size is 1.3" x Ø0.31" with 2.92 mm male / female connectors. ROHS compliant.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.01 to 18 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 18 |
| VSWR: | 1.4:1 Typ / 1.6:1 Max (2 dB attenuator before diode to improve return loss) |
| Frequency Flatness (dB): | ±1 dB Typ |
| Max Input Power: | +20 dBm Max |
| Sensitivity: | 500 mV/mW Min |
| Polarity: | Negative |
| Capacitance: | 30 pf |
| Connectors In/Out: | 2.92 mm Male / Female |
| Finish: | Albaloy Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 °C to +100 °C |
| Non-Operating Temperature: | -65 °C to +100 °C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
