DD-1G18G-ZBS-SFF Active

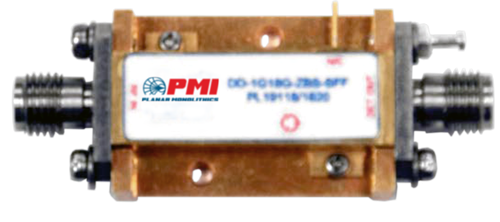

PMI Model DD-1G18G-ZBS-SFF is a Zero-Bias Schottky detector that operates over the 1 to 18 GHz frequency range. This model offers high speeds and excellent frequency flatness performance. The output polarity is positive, but a negative output is available as an option. This detector is packaged in our standard PE2 housing that measures 1.08" x 0.71" x 0.32" and has removable SMA female / male for use in surface mount or connectorized applications.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 18 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 18 |
| VSWR In/Out: | 8.0:1 Typ |
| Frequency Flatness (dB): | ±1 dB Typ |
| VSWR In/Out (Measured): | 8.0:1 Typ - Measured 6.0:1 |
| Max Input Power: | 100 mW, Derated to zero at +150 °C |
| Output Polarity: | Positive |
| Connectors In/Out: | SMA Female |
| Size: | 1.081" x 0.705" x 0.290" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -45 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
