DD-2G4G-ZBS-SMF-ROHS Preliminary
Low Noise Tunnel Diode Detector

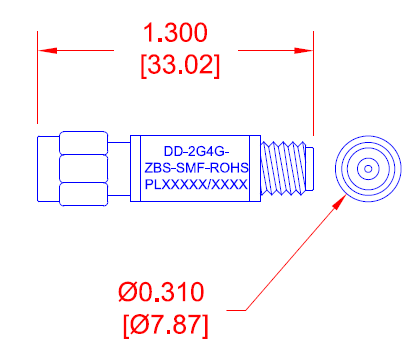

PMI Model DD-2G4G-ZBS-SMF-ROHS is a low noise tunnel diode detector operating over the 2 to 4 GHz frequency range with a maximum input power of 100 mW, sensitivity of 0.5 ± 0.05 mV/µW, flatness of ±1 dB and a capacitance of 30 pf. Package size is 1.3" x Ø0.31" with SMA male / female connectors. ROHS Compliant.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 2 to 4 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 4 |
| VSWR In/Out: | 1.5:1 Typ, 2.0:1 Max |
| Max Input Power: | 100 mW |
| Sensitivity: | 0.5 ± 0.05 mV/µW |
| Polarity: | Negative |
| Flatness: | ±1 dB Typ |
| Capacitance: | 30 pf |
| Connectors In/Out: | SMA Male / Female |
| Size: | 1.3" x Ø0.31" |
| Finish: | Albaloy Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 °C to +110 °C |
| Non-Operating Temperature: | -54 °C to +110 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. G (50g, 11 ms) |
| Vibration: | MIL-STD-202, Method 204D Cond. D (20 g, 10 - 2000 MHz) |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
