DD-34G37G-N-ZBS-15DBM-292MF Active
Low Noise Zero Bias Detector

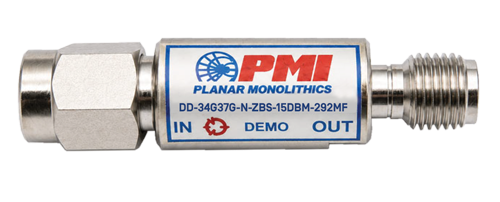

PMI Model DD-34G37G-N-ZBS-15DBM-292MF is a low noise zero biased detector operating over the 34 to 37 GHz frequency range that offers excellent dynamic range and a typical output voltage of > 2 V @ 15 dBm input power into a 600 Ω load. Package size is 1.31” x Ø0.38” with 2.92mm connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 34 to 37 |
| Frequency Min (GHz): | 34 |
| Frequency Max (GHz): | 37 |
| VSWR In/Out: | 5.5:1 Max |
| Frequency Flatness (dB): | ±1 dB Max |
| Rise Time: | 5 ns Typ |
| Voltage Sensitivity: | >500 mV/mW (Open Circuit) |
| Output Voltage: | >2 V Output @ 15 dBm (into a 600 Ohm load) |
| Output Resistance: | <3.5 K Ohm Typ |
| Temperature Stability: | ±0.5 dB Typ over temperature extermes |
| Output Capacitance: | <10 pF Typ |
| Connectors In/Out: | 2.92mm Male / Female |
| Size: | 1.31” x Ø0.38” 33.02 mm x 1.31” x Ø0.7.87 mm |
| Finish: | Albaloy Plated |
| Environmental Ratings: | |
| Operating Temperature: | 20 °C to +85 °C |
| Non-Operating Temperature: | 55 °C to +100 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. G (50g, 11 ms) |
| Vibration: | MIL-STD-202, Method 204D Cond. D (20 g, 10-2000 MHz) |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
