DD-816-P-SMF Active
Tunnel Diode Detector
Additional Documents
- Product Feature
- 3D Model
- PL41907 - Unit Data
- PL41907-1 - Unit Data
- PL41908 - Unit Data
- PL41909 - Unit Data
- PL41910 - Unit Data
- PL41911 - Unit Data
- PL41912 - Unit Data
- PL41913 - Unit Data
- PL41914 - Unit Data
- PL41915 - Unit Data
- PL41916 - Unit Data
- PL41917 - Unit Data
- PL49572 - Unit Data
- PL49573 - Unit Data
- PL49574 - Unit Data
- PL49575 - Unit Data
- PL49576 - Unit Data
- PL49577 - Unit Data

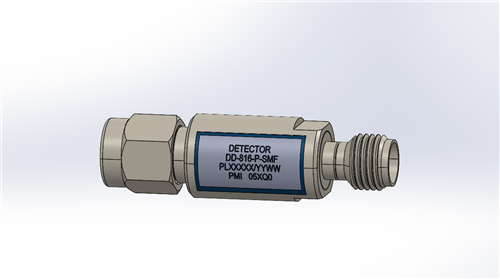

PMI Model DD-816-P-SMF is a tunnel diode detector operating over the 8 to 16 GHz frequency range that offers excellent temperature stability. Package size is 1.314" x Ø0.188" with 2.92mm male / female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 8 to 16 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 16 |
| VSWR In/Out: | 2.3:1 Typ 3.5:1 Max |
| Frequency Flatness (dB): | ±0.6 dB Typ, ±1 dB Max |
| Output Video Polarity: | Positive |
| Connectors In/Out: | 2.92mm male / female - 100% Compatiable with SMA |
| Finish: | Nickle Plated |
| Weight: | 2 oz Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -30 °C to +75 °C |
| Non-Operating Temperature: | -40 °C to +85 °C |
| Humidity: | 95% RH Max @ 40°C - No Condensation |
| Shock: | Inactive Condition- 147.1m/s^2, 11ms |
| Vibration: | Inactive Condition - 2 to 11Hz total amplitude 10.0mm / 11 to 400Hz: 24.5m/s^2 |
