DIP-DC3R7G-4R350G-SFF Active
Diplexer
PMI Model DIP-DC3R7G-4R350G-SFF is a 2 channel suspended substrate stripline diplexer with a center frequencies of 1.85 GHz (CH 1) and 15.15 GHz (CH 2); bandwidth of DC to 3.7 GHz (CH 1, Low Passband) and 4.3 to 20 GHz (CH 2, High Passband); insertion loss of 1.8 dB maximum; rejection (J1): 30 dB (4.3 to 50 GHz) and rejection (J2): 30 dB Min (DC to 3.7 GHz) and input power of 20 W CW. Package size is 1.97" x 1.77" x 0.394" with SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| No. of Channels: | 2 |
| Center Frequencies, Fo (GHz): | CH 1: 1.85 GHz CH 2: 15.15 GHz |
| Frequency Range (GHz): | DC to 20 GHz |
| Bandwidth (GHz): | CH 1: DC to 3.7 GHz CH 2: 4.3 to 20 GHz |

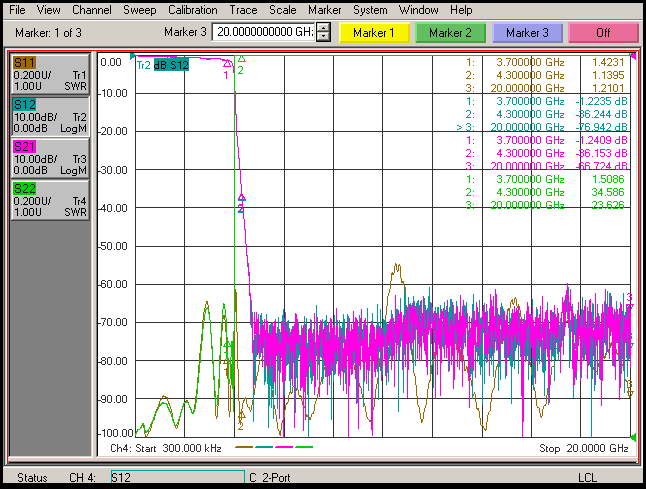

| Low Passband: | DC to 3.7 GHz |

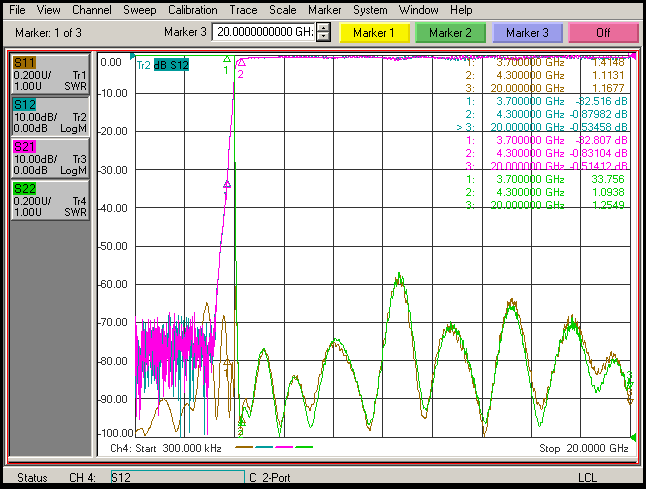

| High Passband: | 4.3 to 20 GHz |
| VSWR (J1): | 2.0:1 Max |
| VSWR (J2): | 2.0:1 Max |
| Insertion Loss (J1): | 1.8 dB Max |
| Insertion Loss (J2): | 1.8 dB Max |
| Rejection (J1): | 30 dB Min (4.3 to 50 GHz) |
| Rejection (J2): | 30 dB Min (DC to 3.7 GHz) |
| Impedance (In/Out): | 50 Ohm |
| Input Power: | 20W CW |
| Connectors: | SMA Female |
| Size: | 1.97" x 1.77" x 0.394" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
