DLVA-0R757-40-50MV Preliminary

Detector Log Video Amplifier (DLVA)

DLVA-0R757-40-50MV
Product Feature

Quantic PMI Model DLVA-0R757-40-50MV is a Detector Log Video Amplifier (DLVA) that is a form, fit, and function replacement for the Loral 342062. This DLVA operates between the 0.75 and 7 GHz frequency range. It has a dynamic range of 40 dB, a log slope of 50 mV/dB, and a nominal video bandwidth of 20 MHz. Designed using innovative technology which provides stunning performance and reliability in a compact package measuring 2.40" x 2.50" x 0.45", making it an optimum solution for high speed channelized receiver applications.

Product Specifications

General Parameters:
Status: Preliminary
CW Immune (Yes/No): No
Frequency Min (GHz): 0.75
Frequency Max (GHz): 7
TSS (dBm): -45 Min
Output Voltage: 0.1 V with -40 dBm and 2.1 V with 0 dBm 100 Ohm Load
Log Slope (mV/dB): 50 into 100 Ohm
Log Range (dBm): -40 to 0
Log Linearity: ±1 dB Max
Rise Time: 25 ns Max
Recovery Time: 500 ns 0 to -40 dBm
Settling Time: 35 ns to 0.5 dB
Frequency Flatness: ±0.75 dB
Video Bandwidth: DC to 20 MHz
Video Load (Ohms): 100
Log Accuracy: ±1 dB Max
Video Connector: SMA (F)
Input VSWR: 2.0:1
Maximum Source VSWR: 2.5:1 Max
Maximum Input Power: +27 dBm
Stability: Unconditional up to 15 t. of RG 174 B/U
Power: +15 VDC, 175 mA
-15 VDC, 175 mA
Connectors: SMA (F)

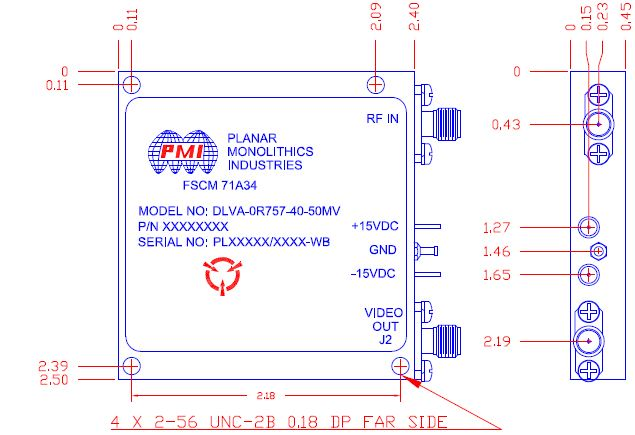

Size: 2.40" x 2.50" x 0.45"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -0 °C to +70 °C
Non-Operating Temperature: -65 °C to +125 °C
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
