DLVA-26-60-30MV Preliminary

Detector Log Video Amplifier (DLVA)

DLVA-26-60-30MV
Product Feature

Quantic PMI Model DLVA-26-60-30MV is a Detector Log Video Amplifier (DLVA) that is a form, fit, and function replacement for the Loral 342098. This DLVA operates between the 2 and 6 GHz frequency range. It has a dynamic range of 60 dB, a log slope of 30 mV/dB, and a nominal video bandwidth of 8 MHz. Designed using innovative technology which provides stunning performance and reliability in a compact package measuring 4.0" x 2.9" x 0.5" making it an optimum solution for high-speed channelized recovery applications.

Product Specifications

General Parameters:
Status: Preliminary
CW Immune (Yes/No): No
Frequency Min (GHz): 2
Frequency Max (GHz): 6
TSS (dBm): -43 Min
Output Voltage: 0.7 V with -40 dBm
2.5 V with +20 dBm 100 Ohm Load
Log Slope (mV/dB): 30 into 100 Ohm
Log Range (dBm): -40 to +20
Log Linearity: ±1 dB Max
±0.75 dB Max @ -40°C to +85°C
Rise Time: 40 ns Max
Recovery Time: 500 ns 20 to -40 dBm
Settling Time: 50 ns to 0.5 dB
Frequency Flatness: ±1.0 dB
Video Bandwidth: DC to 8 MHz
Video Load (Ohms): 100
Log Accuracy: ±1 dB Max
±0.75 dB Max @ -40°C to +85°C
Video Connector: SMA (F)
Input VSWR: 2.0:1
Maximum Source VSWR: 2.5:1 Max
Maximum Input Power: +27 dBm
Stability: Unconditional up to 15 ft of RG 180 B/U
Power: +15 VDC, 175 mA
-15 VDC, 175 mA
Connectors: SMA (F)

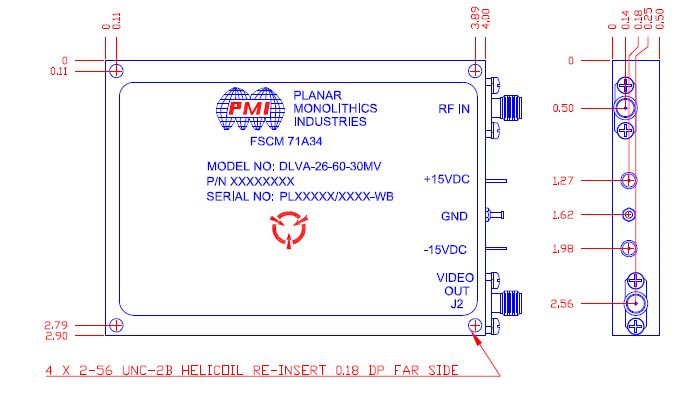

Size: 4.0" x 2.9" x 0.5"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -0 °C to +70 °C
Non-Operating Temperature: -65 °C to +125 °C
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
