DLVA-2G18G-60-X8 Preliminary
8 Channel Detector Log Video Amplifier (DLVA)

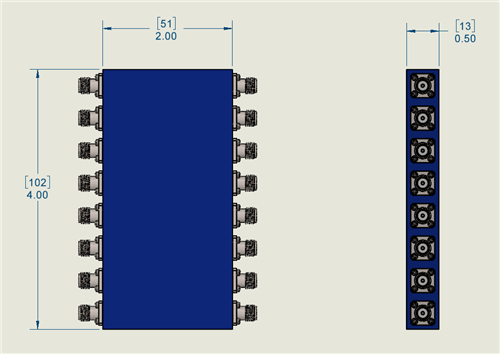

PMI Model DLVA-2G18G-60-X8 is a 8 Channel Detector Log Video Amplifier (DLVA) that operates over the 2 to 18 GHz frequency range with a dynamic range 50 dB typical; isolation of 60 dB minimum (channel-to-channel); a log video output slope of -15 mV/dB; log video output voltage of -0.9 to -1.8 VDC; and a input power handling of 15 dBm. Housing size is 4.0" x 2.0" x 0.5" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| CW Immune (Yes/No): | No |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Log Slope (mV/dB): | -15 Typ |
| Rise Time: | 20 ns Typ |
| Fall Time: | 20 ns Typ |
| Power Supply: | +12 VDC |
| VSWR: | 2:1 Typ (2 to 6 GHz), 2.5:1 Typ (6 to 12 GHz), 3.5:1 Typ (12 to 18 GHz) |
| Dynamic Range: | 50 dB Typ |
| Input Power Handling: | 15 dBm Max |
| Isolation: | 60 dB Min (Channel to channel) |
| Log Video Output Slope: | -15 mV/dB Typ |
| Log Video Output Voltage: | -0.9 to -1.8 VDC |
| RF Connectors: | SMA Female |
| Connectors: | 4.0" x 2.0" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ˚C to +85 ˚C |
| Non-Operating Temperature: | -55 ˚C to +125 ˚C |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
