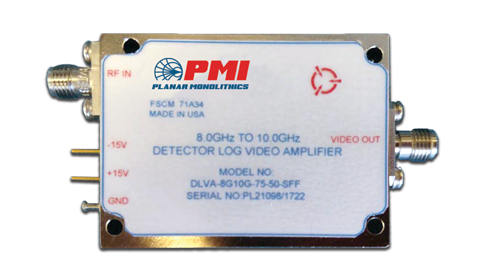

| General Parameters: |
|---|
| Status: | Active |
|---|
| CW Immune (Yes/No): | No |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 10 |
|---|
| TSS (dBm): | -78 |
|---|
| TSS (Measured): | -78 dBm - Measured -78 dBm |
|---|
| Log Slope (mV/dB): | 50 ± 4 |
|---|
| Log Range (dBm): | -75 to 0 |
|---|
| Log Linearity: | ±1.8 dB - Measured ±1.3 dB |
|---|
| Rise Time: | 30 ns - Measured 28.6 ns |
|---|
| Fall Time: | 150 ns - Measured <100 ns |
|---|
| Recovery Time: | 500 ns for 10.0 µs PW - Measured 100 ns |
|---|
| Power Supply: | +15 V @ 350 mA - Measured 230 mA,
-15 V @ 100 mA - Measured 60 mA |
|---|
| Dynamic Range Log: | -75 to 0 dBm |
|---|
| Frequency Flatness: | ±1.2 dB - Measured ±1.1 dB |
|---|
| DC Offset: | 50 ± 50 mV - Measured 50 ± 49 mV |
|---|
| Dynamic Range: | -75 to 0 dBm |
|---|
| Connectors: | SMA (F) |
|---|
| Size: | 2.0" x 1.5" x 0.4" |
|---|
| Finish: | Electroless Nickel Plate |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +95 ºC (Operating) |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC (Storage) |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond A |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213, COND J |
|---|
| Vibration: | MIL-STD-202, METHOD 214, COND A |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond B |
|---|
