DP20M1G-CD-SFF Active
High Pass Filter
Quantic PMI Model DP20M1G-CD-SFF is a High Pass filter that operates over the frequency range of 0.02 to 1 GHz. Package size is 1.57" x 0.61" x 0.61" with - removable SMA female connectors in and out.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 0.02 to 1 |
| Cut-Off Frequency (GHz): | 0.02 |
| Passband Insertion Loss (dB): | Equalized to match supplied graph |
| VSWR: | 2.3:1 |
| Connectors: | SMA Female |

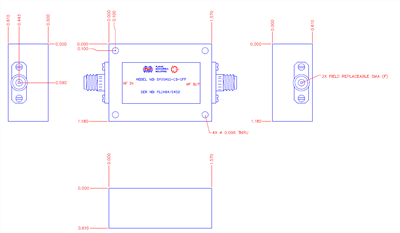

| Size: | 1.57" x 1.18" x 0.61" |
| Export Classification (ECCN): | EAR99 |
