DRO-1-10-SF Preliminary
Dielectric Resonator Oscillator

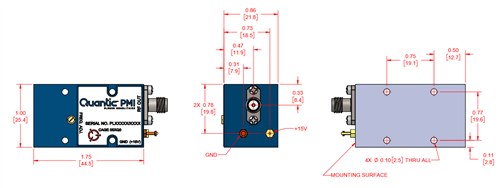

PMI Model DRO-1-10-SF is a dielectric resonator oscillator with a center frequency of 1 GHz that provides a power output of 13 dBm and a mechanical tuning range of ±10 MHz. Housing size is 1.75" x 1.0" x 0.86" with a SMA female connector and RFI solder terminals.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Output Frequency, Fo (GHz): | 1 |
| Output Power (dBm): | 10 dBm Min |
| Spurious (dBc): | -75 dBc Max |
| Harmonics (dBc): | -20 dBc Max |
| Frequency Stability: | ±10 ppm/°C Max |
| Phase Noise @ 100 kHz Offset: | -95 dBc/Hz Max |
| Mechanical Tuning Range: | ±10 MHz Min |
| BIAS Voltage: | +10 V Min, +12 V Typ, +15 V Max |
| BIAS Current: | 200 mA Typ |
| Connectors: | RF: SMA Female Power: RFI Solder Terminals |
| Finish: | Painted Blue Mounting surface nickel plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 0 °C to 50 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
