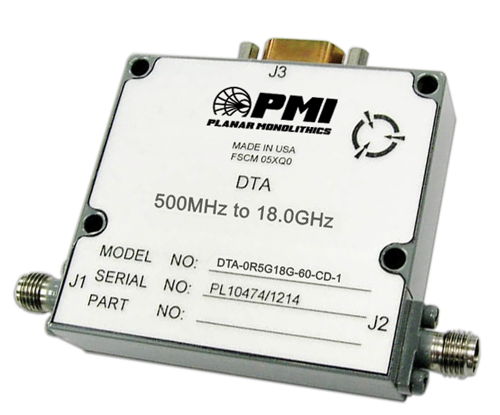

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 0.5 to 18.0 GHz |
|---|
| Frequency Min: | 0.5 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Insertion Loss: | 4.8 dB Max |
|---|
| Insertion Loss (Measured): | 4.8 dB Max - Measured 4.7 dB |
|---|
| Attenuation Range: | 60 dB |
|---|
| Digital Control: | 10 Bit |
|---|
| Minimum Attenuation Step: | 0.06 dB |
|---|
| VSWR: | 2.0:1 Max - Measured 1.9:1 |
|---|
| Operating Input Power: | 15 dBm Typ |
|---|
| Survival Power: | 1 W Average from -65 ºC to +25 ºC |
|---|
| Attenuation Flatness: | ±1.0 dB Typ - Measured ±0.84 dB @ 20 dB,
±1.5 dB Typ - Measured ±1.07 dB @ 40 dB,
±3.05 dB Typ - Measured ±1.46 dB @ 60 dB |
|---|
| Attenuation Accuracy: | ±1.0 dB Typ - Measured ±0.86 dB @ 0 to 20 dB,
±1.5 dB Typ - Measured ±1.46 dB @ 20 to 40 dB,
±2.0dB Typ - Measured ±1.46 dB @ 40 to 60 dB |
|---|
| Swiching Time (On Time): | 1.0 µs Max - Measured 1 µs |
|---|
| Swiching Time (Off Time): | 0.5 µs Max - Measured 0.4 µs |
|---|
| Power Supply: | +12 to +15 V @ 150 mA Max - Measured 128 mA |
|---|
| Weight: | 3.0 oz (85 gm) approximate |
|---|
| Finish: | Painted Gray |
|---|
| Logic Input: | -0.3 to +0.8 V (Logic |
|---|
| Connectors: | RF: SMA Female
Control: 15 Pin Micro-D-Female, Shipped with mating Micro-D-Male |
|---|
| Size: | 2.00" x 1.80" x 0.50" |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
