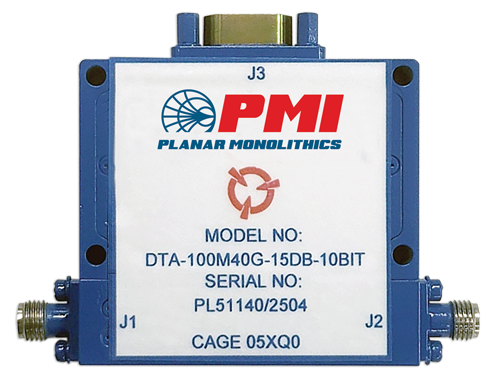

DTA-100M40G-15DB-10BIT Active
10-Bit Digital Attenuator
PMI Model DTA-100M40G-15DB-10BIT Is a 10-bit digital 16 dB attenuator with step resolution of 0.015625 dB over the frequency range of 0.1 to 40 GHz with an attenuation accuracy of ±2.5 dB; insertion loss of 3 dB up to 20 GHz and 6 dB @ 40 GHz; input 1 dB compression of 20 dBm and a VSWR of 2.5:1. Housing size is 2.0" x 1.8" x 0.5" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.1 to 40 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 40 |
| Attenuation Range (dB): | 0 to 16 dB |
| Attenuation Accuracy (dB): | ±2.5 dB Typ |
| Insertion Loss (dB): | 3 dB Typ (Up to 20 GHz), 6 dB Typ (Up to 40 GHz) |
| Minimum Attenuation Step: | 0.015625 dB |
| VSWR: | 2.5:1 Typ |
| Power Handling Capability: | 24 dBm CW Max |
| Input 1dB Compression: | 20 dBm Typ |
| Switching Time: | On Time 1 µs Max Off Time 0.5 µs Max |
| Power Supply: | +12 to +15 VDC @ 50 mA Max |
| Logic Input: | Logic "0" (BIT OFF) 0 to +0.8 V Logic "1" (BIT ON) +2 to +5 V |
| Digital Control: | 10 Bit |
| Connectors: | RF: 2.92mm Female Control: Micro-D Female (Shipped with Micro-D Male mating connector) |
| Size: | 2.0" x 1.8" x 0.5" |
| Finish: | Painted Blue |
| Weight: | 3 oz (85 gm) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -50 ˚C to +85 ˚C |
| Non-Operating Temperature: | -65 ˚C to +125 ˚C |
| Humidity: | MIL-STD-202F, Method 103B COND. B |
| Shock: | MIL-STD-202F, Method 213B COND. B |
| Vibration: | MIL-STD-202F, Method 204D COND. B |
| Altitude: | MIL-STD-202F, Method 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
