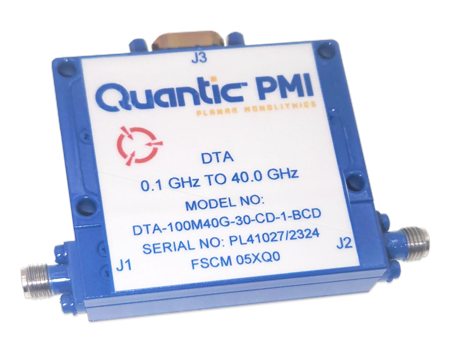

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.1 to 40 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Attenuation Range (dB): | 30 dB |
|---|
| Accuracy of Attenuation: | ±1 dB Max @ +25 °C |
|---|
| Insertion Loss (dB): | 5 dB Typ, 5.5 dB Max (Up to 20 GHz)
7.5 dB Typ, 8 dB Max (Up to 40 GHz) |
|---|
| Minimum Attenuation Step: | 1 dB |
|---|
| VSWR: | 2.5:1 Typ |
|---|
| Power Handling Capability: | 24 dBm CW Max |
|---|
| Power Supply: | +12 to +15 VDC @ 50 mA Max |
|---|
| Logic Input: | Logic "0" (BIT OFF) = 0 to +0.8 V
Logic "1" (BIT ON) = 2 to +5 V |
|---|
| Switching Time: | 1 µs Max (ON)
0.5 µs Max (OFF) |
|---|
| Input 1 dB Compression: | 17 dBm Min when attenuation >10 dB |
|---|
| Digital Control: | 6 Bit |
|---|
| Connectors: | RF: 2.92mm Female
Control: 15 Pin Micro-D Female
(Shipped with Micro-D mating connector) |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 3 oz (85 gm) Approximate |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -50 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107 |
|---|
