DTA-100M50G-30-CD-1 Preliminary

5 BIT Programmable PIN Diode Attenuator

DTA-100M50G-30-CD-1
Product Feature

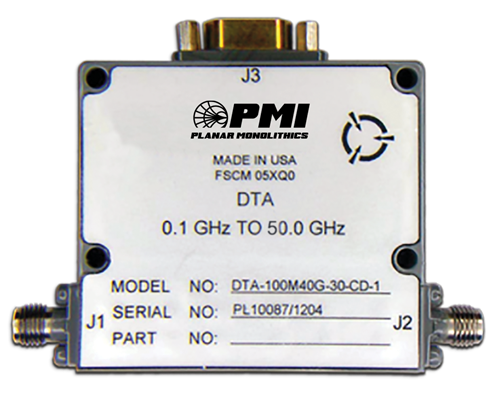

PMI Model DTA-100M50G-30-CD-1 is a 5 BIT programmable 30 dB PIN diode attenuator with a step resolution of 1 dB over the frequency range of 0.1 to 50 GHz that operates on a single +15 VDC supply and draws only 40 mA of current. High levels of attenuation accuracy of 0.6 dB are achieved and provides ultra-fast switching speeds of 300 ns with an operating input power rating of 20 dBm. Housing measures 2.0" x 1.8" x 0.5" with 15 Pin Micro-D female control connector (Mating Connector Supplied) and 2.4mm female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.1 to 50
Frequency Min (GHz): 0.1
Frequency Max (GHz): 50
Attenuation Range (dB): 30 dB
Attenuation Step Size - LSB (dB): 1 dB
Attenuation Accuracy (dB): ±3.5 dB Typ
Insertion Loss (dB): 5 dB Typ (Up to 20 GHz),
8 dB Typ (Up to 40 GHz),
10 Typ (Up to 50 GHz)
Minimum Attenuation Step: 1 dB
VSWR: 2.5:1 Max
Operating Input Power: 24 dBm CW Max
Input 1dB Compression: 20 dBm Typ
Swiching Time (On Time): 1 µs Max
Swiching Time (Off Time): 0.5 µs Max
Power Supply: +15 VDC @ 50 mA Max
Logic Input: Logic "0" (BIT OFF) = -0.3 to +0.8 V
Logic "1" (BIT ON) = +2 to +5 V
Digital Control: 5 BIT
Connectors: RF: 2.4mm Female
Control & Power: 15 PIN Micro-D-female,
(Mating Connector Supplied)
Size: 2.0" x 1.8" x 0.5"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -50 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107
