DTA-18G40G-60-CD-1-OPT32G37G Preliminary
Digital Attenuator

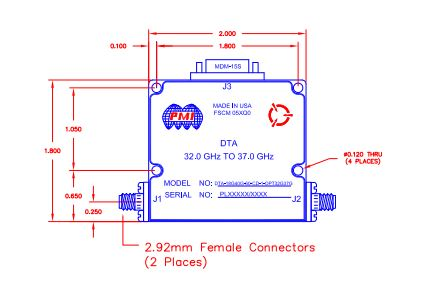

Quantic PMI Model DTA-18G40G-60-CD-1-OPT32G37G is a 11 BIT programmable 60 dB attenuator with step resolution as low as 0.05 dB over the frequency range of 32 to 37 GHz. Housing measures 2.0" x 1.8" x 0.5" with 15 Pin Micro-D female control connector (Mating Connector Supplied) and 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 32 to 37 |
| Frequency Min (GHz): | 32 |
| Frequency Max (GHz): | 37 |
| Attenuation Range (dB): | 60 dB |
| Attenuation Flatness (dB): | ±3 dB Typ |
| Attenuation Accuracy (dB): | ±3 dB Typ |
| Insertion Loss (dB): | 11 dB Typ |
| VSWR: | 2.5:1 Max |
| Operating Input Power: | 24 dBm CW Max |
| Input 1dB Compression: | 10 dBm Typ |
| Swiching Time (On Time): | 1 µs Max |
| Swiching Time (Off Time): | 0.5 µs Max |
| Power Supply: | 15 V @ 100 mA Max |
| Logic Input: | Logic "0" (BIT OFF) = -0.3 to +0.8 V Logic "1" (BIT ON) = +2 to +5 V |
| Digital Control: | 11 BIT |
| Connectors: | RF: 2.92mm Female Control & Power: 15 PIN Micro-D-female, (Mating Connector Supplied) |
| Size: | 2.0" x 1.8" x 0.5" |
| Finish: | Painted Blue |
| Weight: | ~3 oz (85 gm) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
