| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 1.0 to 18.0 GHz |
|---|
| Frequency Min: | 1.0 GHz |
|---|
| Frequency Max: | 18.0 GHz |
|---|
| Insertion Loss: | 5 dB max., 4.8 dB Typ |
|---|
| Attenuation Range: | 60 dB |
|---|
| Digital Control: | 7 Bit |
|---|
| Minimum Attenuation Step: | 0.5 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Survival Power: | 1 W Average from -65 ºC to +25 ºC |
|---|
| Attenuation Accuracy: | 0 to 20 dB: ±1.0 dB Max
20 to 40 dB: ±1.5 dB Max
40 to 60 dB: ±2.0 dB Max |
|---|
| Monotonicity: | Guaranteed |
|---|
| Weight: | 3.0 oz (85 gm) Approximate |
|---|
| Finish: | Painted Blue |
|---|
| Connectors: | 2 SMA Female & 15 PIN Micro-D Female
Shipped with mating Micro-D Male |
|---|

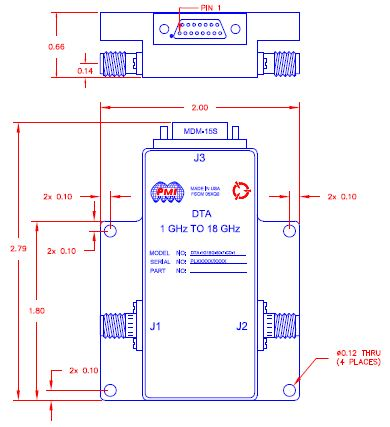

| Size: | 2.00" x 2.79" x 0.66" |
|---|
| Mean Attenuation Range: | 60 dB |
|---|
| Flatness Up To: | 20 dB: ±1.0 dB Max
40 dB: ±1.25 dB Max
60 dB: ±3.0 dB Max |
|---|
| Temperature Coefficient (Max): | ±0.02 dB/ºC |
|---|
| Operating Power: | +17 dBm CW |
|---|
| Switching Time: | On Time: 1.0 µs Max
Off Time: 0.5 µs Max |
|---|
| DC Power Supply: | +15 V @ 150 mA Max |
|---|
| Logic Input @ 10 uA Max: | Logic "0" (Bit Off): -0.3 to +0.8 V
Logic "1" (Bit On): _2.0 to +5.0 V |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B (96 Hours @ 95%) |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B (75 g, 6 ms) |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B (Lesser of 0.06" Double Amplitude or 15 g) |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B (50,000 ft.) |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D, Cond. A (5 Cycles) |
|---|
