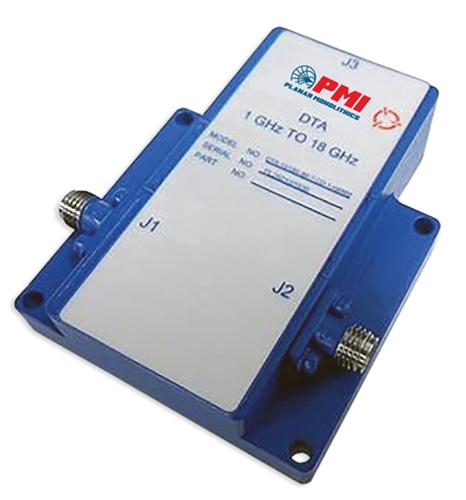

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 1 to 18 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Attenuation Range (dB): | 60 dB |
|---|
| Attenuation Flatness (dB): | ±1 dB Max @ 20 dB
±1.25 dB Max @ 40 dB
±3 dB Max @ 60 dB |
|---|
| Attenuation Accuracy (dB): | 0 to 20 dB: ±1 dB Max
20 to 40 dB: ±1.5 dB Max
40 to 60 dB: ±2 dB Max |
|---|
| Insertion Loss (dB): | 5 dB Max, 4.8 dB Typ |
|---|
| Minimum Attenuation Step: | 0.5 dB |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Survival Power: | 1 W average from -65 to +25 ºC |
|---|
| Monotonicity: | Guaranteed |
|---|
| Temperature Coefficient (Max): | ±0.02 dB/ºC |
|---|
| Operating Power: | 17 dBm CW |
|---|
| Switching Time: | On Time: 1 µs Max
Off Time: 0.5 µs Max |
|---|
| DC Power Supply: | +15 V @ 150 mA Max |
|---|
| Sealing: | Hermetic |
|---|
| Logic Input @ 10 uA Max: | Logic "0" (BIT OFF) = -0.3 to +0.8 V
Logic "1" (BIT ON) = +2 to +5 V |
|---|
| Digital Control: | 7 BIT |
|---|
| Connectors: | RF: SMA Female
Control & Power: 15 PIN Micro-D-female,
(Mating Connector Supplied) |
|---|
| Size: | 2.0" x 2.79" x 0.66" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | ~3 oz (85 gm) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B (96 Hours @ 95%) |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B (75 g, 6 ms) |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B (Lesser of 0.06" Double Amplitude or 15 g) |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B (50, 000 ft.) |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D, Cond. A (5 Cycles) |
|---|
