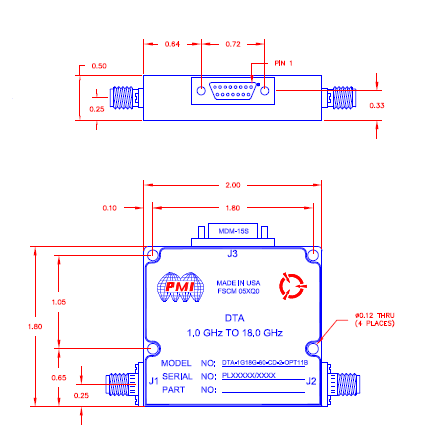

| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range: | 1.0 to 18.0 GHz |
|---|
| Frequency Min: | 1 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Insertion Loss: | 4.5 dB max |
|---|
| Attenuation Range: | 60 dB |
|---|
| Digital Control: | 11 Bit |
|---|
| Minimum Attenuation Step: | 0.03 dB |
|---|
| VSWR: | 2.0:1 max. |
|---|
| Operating Input Power: | 15 dBm typ. |
|---|
| Survival Power: | 1 W average from -65 ºC to +25 ºC |
|---|
| Attenuation Flatness: | ±1.0 dB typ. @ 20 dB Attenuation, ±1.25 dB typ. @ 40 dB Attenuation, ±3.0 dB typ. @ 60 dB Attenuation |
|---|
| Attenuation Accuracy: | ±1.0 dB @ 0 dB to 20 dB Attenuation, ±1.5 dB @ 20 dB to 40 dB Attenuation, ±1.0 dB @ 40 dB to 60 dB Attenuation |
|---|
| Swiching Time (On Time): | 1.0 us max. |
|---|
| Swiching Time (Off Time): | 0.5 us max. |
|---|
| Power Supply: | +15 V @ 150 mA max. |
|---|
| Weight: | 3.0 oz (85 g) approx |
|---|
| Finish: | Painted Blue |
|---|
| Logic Input: | Logic "0" (Bit Off): -0.3 to +0.8 V Logic "1" (Bit On): +2.0 to +5.0 V 10 Bit programmable |
|---|
| Connectors: | 2 SMA & 15 PIN D-Sub Shipped with mating D-Sub |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107 |
|---|
