DTA-200M18G-100-CD-EXT Active
8 BIT Digital Attenuator

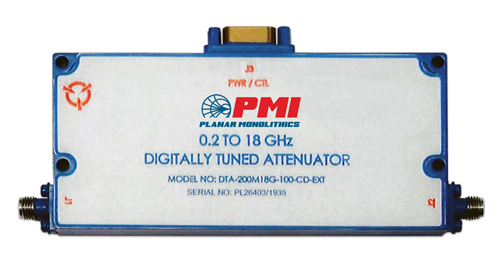

PMI Model DTA-200M18G-100-CD-EXT is an 8 BIT Digital Attenuator designed for the 0.2 to 18 GHz frequency range offering an attenuation range of 100 dB with an attenuation accuracy and flatness of ±3 dB to 100 dB; an insertion loss of 12 dB maximum; a maximum switching speed of 1 µs (On) / 0.5 µs (Off); and a input power level of 20 dBm. Housing measures 4.0" x 1.8" x 0.5" with 15 Pin Micro-D female control connector (Mating Connector Supplied) and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.2 to 18 |
| Frequency Min (GHz): | 0.2 |
| Frequency Max (GHz): | 18 |
| Attenuation Range (dB): | 100 dB Min |
| Attenuation Flatness (dB): | Up to 20 dB: ±1 dB Typ Up to 40 dB: ±1.25 dB Typ Up to 60 dB: ±1.5 dB Typ Up to 80 dB: ±2 dB Typ Up to 100 dB: ±3 dB Typ |
| Attenuation Accuracy (dB): | Up to 20 dB: ±1 dB Typ Up to 40 dB: ±1.25 dB Typ Up to 60 dB: ±1.5 dB Typ Up to 80 dB: ±2 dB Typ Up to 100 dB: ±3 dB Typ |
| Insertion Loss (dB): | 12 dB Max |
| Minimum Attenuation Step: | 0.5 dB |
| VSWR: | 2.4:1 Max |
| Power Supply: | +8 VDC @ 700 mA Max |
| Temperature Stability: | ±0.25 dB Over Operating Temperature |
| Switching Speed: | On: 1 µs Max Off: 0.5 µs Max |
| RF Operating Input Power Leve: | 20 dBm Max |
| Survival Input Power Level: | 1 W CW 10 W Peak, 1 µs Pulse Width 1% Duty Cycle |
| Latch: | External TTL |
| Digital Control: | 8 BIT TTL |
| Connectors: | RF: SMA Female Control: 15 Pin Micro-D-Female, (Shipped with mating Micro-D-Male) |
| Size: | 4.0" x 1.8” x 0.5” |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | +55 °C ± 1 °C |
| Non-Operating Temperature: | -45 °C to +85 °C |
