| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 22.5 to 27.5 |
|---|
| Frequency Min (GHz): | 22.5 |
|---|
| Frequency Max (GHz): | 27.5 |
|---|
| Attenuation Range (dB): | 1 to 51.175 dB |
|---|
| Attenuation Flatness (dB): | ±1 dB Max @ 20 dB - Measured ±0.51 dB,
±2 dB Max @ 50 dB- Measured ±0.58 dB |
|---|
| Attenuation Accuracy (dB): | ± 1 dB Max - Measured:
0 to 10 dB: ± 0.14 dB,
10 to 30 dB: -0.05 dB,
30 to 50 dB: 0.12 dB |
|---|
| Insertion Loss (dB): | 2.2 dB Max |
|---|
| VSWR: | 2.0:1 Max - Measured 1.8:1 |
|---|
| Operating Input Power: | 10 mW (CW or Peak) |
|---|
| Power Supply: | +15 V @100 mA Max - Measured 25 mA |
|---|
| Digital Control: | 11 BIT |
|---|
| DC Connector: | 15 Pin Micro-D female (Mating Connector Supplied) |
|---|
| Connectors: | 2.92mm Female Input and Output |
|---|

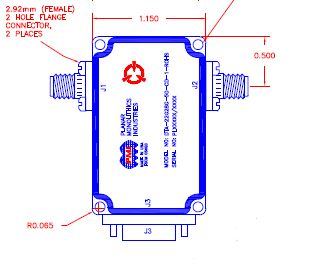

| Size: | 1.8" x 1.15" 0.4" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -54 ºC to 100 ºC |
|---|
| Humidity: | 95% Max |
|---|
| Shock: | MIL-STD-202G, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
|---|
