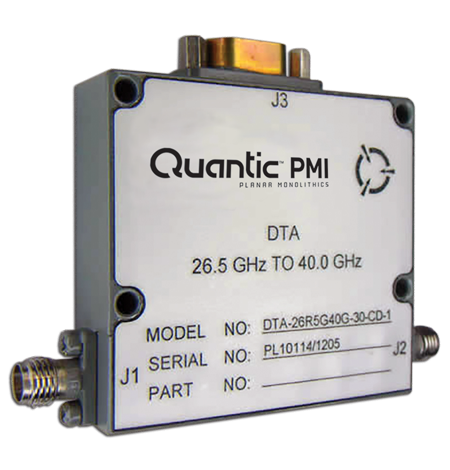

DTA-26R5G40G-30-CD-1 Active

10-Bit Programmable Attenuator

Product Feature

Quantic PMI Model DTA-26R5G40G-30-CD-1 is a 10-Bit programmable 30 dB PIN diode attenuator with a step resolution of 0.03 dB over the frequency range of 26.5 to 40 GHz. This model operates on a single +15 VDC supply and draws only 50 mA of current. Remarkably high levels of attenuation accuracy of 0.03 dB are achieved. This attenuator provides ultra-fast switching speeds of 300 ns and has an operating input power rating of +10 dBm. This model is supplied in a small, light-weight housing measuring 2.0 x 1.8 x 0.5 inches.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 26.5 to 40 GHz
Frequency Min: 26.5 GHz
Frequency Max: 40 GHz
Insertion Loss: 6.0 dB Typ
Insertion Loss (Measured): 6.0 dB Typ - Measured 5.93 dB
Attenuation Range: 30 dB
Digital Control: 10-BIT Binary TTL
LSB: 0.03 dB
VSWR: 2.5:1 Max - Measured 2.25:1
Operating Input Power: +24 dBm CW Max
Input 1dB Compression: +10 dBm Typ
Attenuation Flatness: Measured:
@ 10 dB: ±0.98 dB,
@ 20 dB: ±1.45 dB,
@ 30 dB: ±1.92 dB
Attenuation Accuracy: ±2.0 dB Typ - Measured:
0 to 10 dB: ±0.35 dB,
10 to 20 dB: ±0.31 dB,
20 to 30 dB: ±0.33 dB
Swiching Time: 300 ns Typ, 1.0 µs Max - Measured 0.30 µs
Input Tracking: Monotonic
Power Supply: +15 V @ 50 mA Typ - Measured 38 mA
Connectors: 2.92mm Female
DC Connector: 15 Pin D-Sub Female (mating Connector Supplied)
Size: 2.0" x 1.8" x 0.5"
Environmental Ratings:
Operating Temperature: -50 ºC to +100 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
