DTA-26R5G40G-30-CD-1-OPT32G37G Active
10 Bit Pin Diode Attenuator

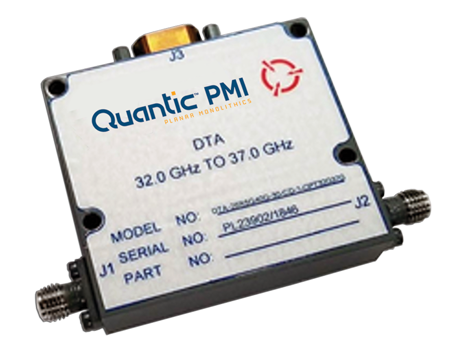

Quantic PMI Model DTA-26R5G40G-30-CD-1-OPT32G37G is a 10 BIT programmable 30 dB pin diode attenuator with a step resolution of 0.03 dB over the frequency range of 32 to 37 GHz with aa attenuation accuracy of 0.03 dB that provides ultra-fast switching speeds of 300 ns and has an operating input power rating of 10 dBm. Housing measures 2.0" x 1.8" x 0.5" with 15 Pin Micro-D female control connector (Mating Connector Supplied) and 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 32 to 37 |
| Frequency Min (GHz): | 32 |
| Frequency Max (GHz): | 37 |
| Attenuation Range (dB): | 30 dB |
| Attenuation Step Size - LSB (dB): | 0.03 dB |
| Attenuation Accuracy (dB): | ±2 dB Typ |
| Insertion Loss (dB): | 6 dB Typ |
| VSWR: | 2.5:1 Max |
| Operating Input Power: | 24 dBm CW Max |
| Input 1dB Compression: | 10 dBm Typ |
| Input Tracking: | Monotonic |
| Power Supply: | +15 VDC @ 50 mA Typ |
| Digital Control: | 10 BIT TTL |
| DC Connector: | 15 Pin D-Sub Female (mating Connector Supplied) |
| Connectors: | 2.92mm Female |
| Size: | 2.0" x 1.8" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -50 ºC to 100 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
