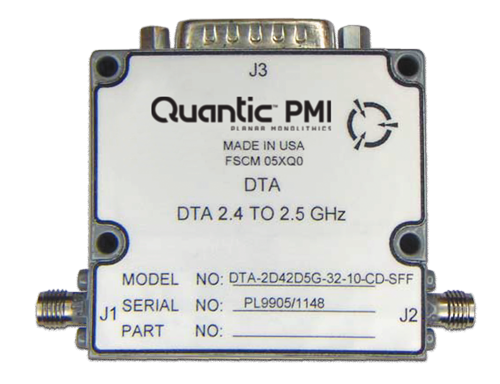

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 2.4 to 2.5 |
|---|
| Frequency Min (GHz): | 2.4 |
|---|
| Frequency Max (GHz): | 2.5 |
|---|
| Attenuation Range (dB): | 32 dB |
|---|
| Attenuation Flatness (dB): | ±0.1 dB @ 10 dB,
±0.15 dB @ 20 dB,
±0.175 dB @ 32 dB |
|---|
| Attenuation Accuracy (dB): | ±0.25 dB @ 10 dB,
±0.5 dB @ 20 dB,
±0.1 dB @ 32 dB |
|---|
| Insertion Loss (dB): | 3 dB Max |
|---|
| VSWR: | 1.75:1 Max |
|---|
| Operating Input Power: | 15 dBm Max |
|---|
| Survival Power: | 20 dBm Max |
|---|
| Power Supply: | +12 to +15 VDC @ 100 mA Max,
-12 to -15 VDC @ 80 mA Max |
|---|
| Digital Control: | 10 BIT TTL |
|---|
| DC Connector: | 15 Pin D-Sub Female (Mating Connector Supplied) |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 2.0" x 1.81" x 0.88" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +70 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
